Low Location Lighting (LLL) for Offshore Vessels and Platforms

Why escape routes are marked at floor level offshore, and the standards that govern photoluminescent LLL systems. · 4 min read

Why LLL Exists

In an offshore emergency, conventional ceiling-mounted lighting fails the people who need it most. Smoke from a fire rises and accumulates near the overhead, obscuring exit signs and beacons exactly when crews are trying to find their way out. Low Location Lighting (LLL) solves this by marking escape routes at floor level, where smoke is thinnest and where personnel — many of them likely crawling — actually need the visual cue.

On vessels and offshore platforms, LLL is not a comfort feature. It is a regulated life-safety system, and its design, installation, and maintenance are governed by a specific stack of international rules.

Photoluminescent LLL: The Offshore Default

Most offshore LLL installations use photoluminescent (PL) materials. These are passive systems built around advanced phosphor chemistry — typically strontium aluminate — that absorbs ambient light during normal operations and re-emits it as a sustained glow once the surrounding light is removed.

The appeal offshore is straightforward:

• Fail-safe by design. No batteries, bulbs, wiring, or control circuitry. A photoluminescent strip cannot be tripped, shorted, or accidentally switched off, so it remains visible even after a total power failure or main circuit damage.
• Minimal maintenance. Service typically reduces to periodic cleaning and confirming that the strips remain unobstructed and continue to receive enough ambient light to charge.
• Sustained visibility. Modern PL formulations comfortably exceed the duration needed for a full platform muster, providing usable illumination well beyond the active phase of an evacuation.

The Regulatory Stack

Four bodies of regulation tend to apply to offshore LLL systems, and most projects need to satisfy all of them simultaneously:

SOLAS Chapter II-2

The International Convention for the Safety of Life at Sea sets the baseline expectation that escape routes — including stairs and exits — must be marked with low-mounted lighting or photoluminescent indicators. For vessels and offshore units governed by the MODU Code, this is the foundational requirement that everything else builds on.

IMO Resolution A.752(18)

This resolution is where the specifics start. It addresses where LLL goes, how continuous it must be, and what other low-level markings (exit signs, directional arrows, door handle indicators) must accompany the main escape line. The mounting heights and continuity requirements set out here are what most class surveyors will measure against during inspection.

ISO 15370

ISO 15370 covers the management, arrangement, and ongoing testing of LLL systems. Among other things, it sets out the in-situ luminance verification regime — periodic measured testing that confirms the installed material still meets the required brightness in millicandelas per square metre (mcd/m²) and has not silently degraded over years of service.

The FSS Code

Chapter 11 of the International Code for Fire Safety Systems specifies the engineering requirements for these systems, including their durability under the corrosion and vibration conditions characteristic of offshore environments. Components specified to FSS-compliant grades are designed to survive the operational environment, not just bench-test conditions.

Where the Strips Actually Go

A correctly installed offshore LLL system goes well beyond a single line of glow strips along a corridor. The full installation typically includes:

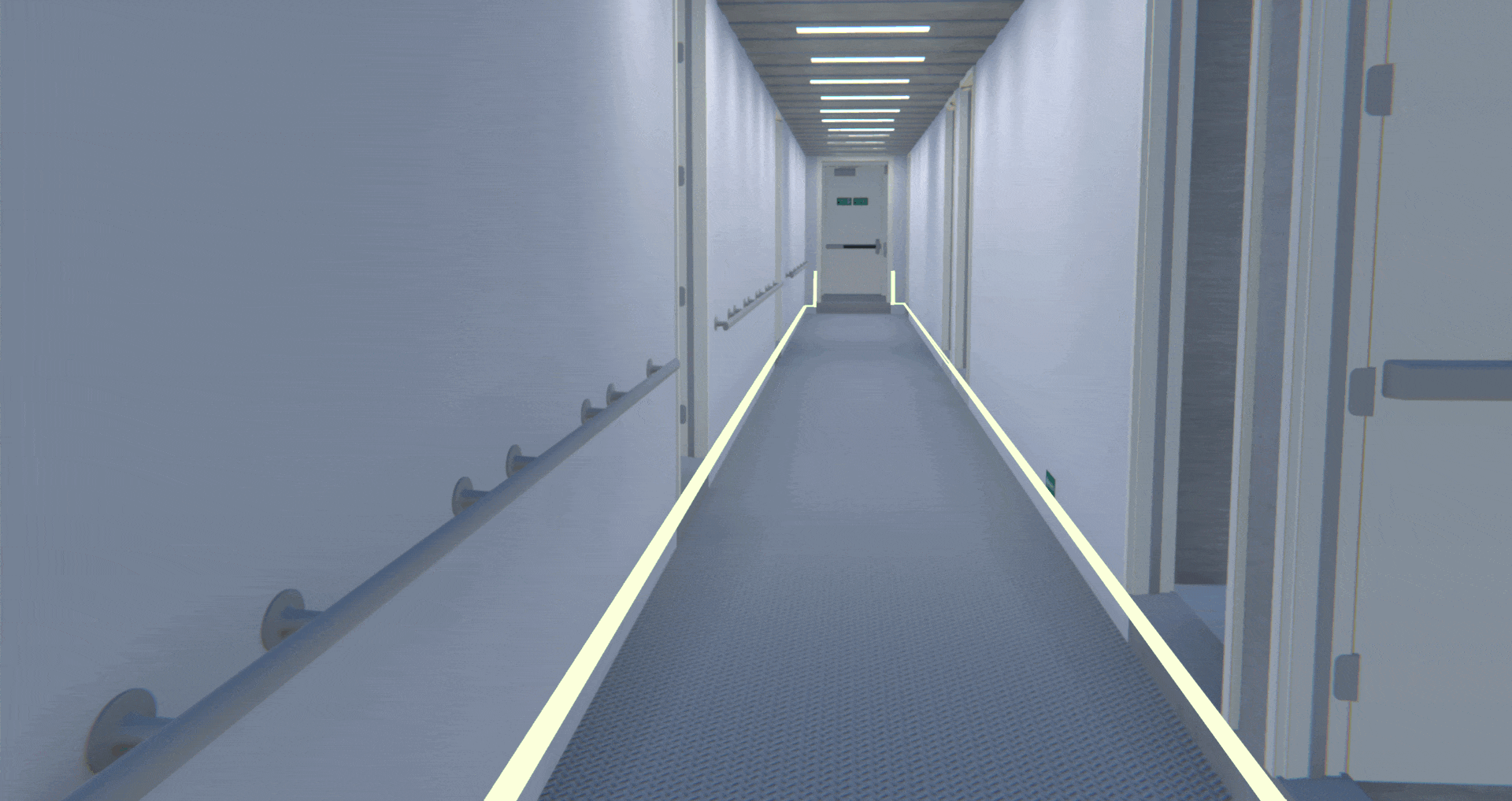

• Continuous escape line. An unbroken photoluminescent line running along the wall at low level, leading without ambiguity to the nearest assembly point or survival craft. The continuity requirement is critical — gaps create exactly the moments of hesitation that smoke-filled corridors cannot afford.
• Directional arrows. Placed at decision points and corridor junctions, indicating the direction of travel toward safety. These are also installed at low level, since by definition the high-level signs may be invisible.
• Door markings. Each exit door is marked with photoluminescent material, and crucially with an indicator showing which side the handle or opening mechanism is on. In a smoke-filled corridor, fumbling for a handle on the wrong side costs valuable seconds.
• Stair tread and nosing markings. Each step has photoluminescent material outlining both the tread and the nosing. This is the single most effective measure for preventing trip-and-fall injuries during evacuation, and it is one of the items most often skimped on in retrofit projects.

What Maintenance Actually Looks Like

Photoluminescent LLL has the lowest day-to-day demands of any life-safety lighting technology, but "low maintenance" is not "no maintenance". A practical offshore inspection regime usually includes:

• Routine wipe-downs to remove salt, dust, or oil residue that would otherwise block charging light from reaching the material.
• Visual inspections to identify obstructions, damaged sections, or areas where ambient light has been reduced (for example, a new piece of equipment now blocking a previously well-lit run).
• Periodic instrumented luminance testing in line with ISO 15370 — measuring actual decay performance against the certified class to catch material degradation before it affects evacuation safety.

The combination is what gives PL-based LLL its long service life. Skip the testing component and you have a system that looks fine but may no longer perform when the lights go out.
